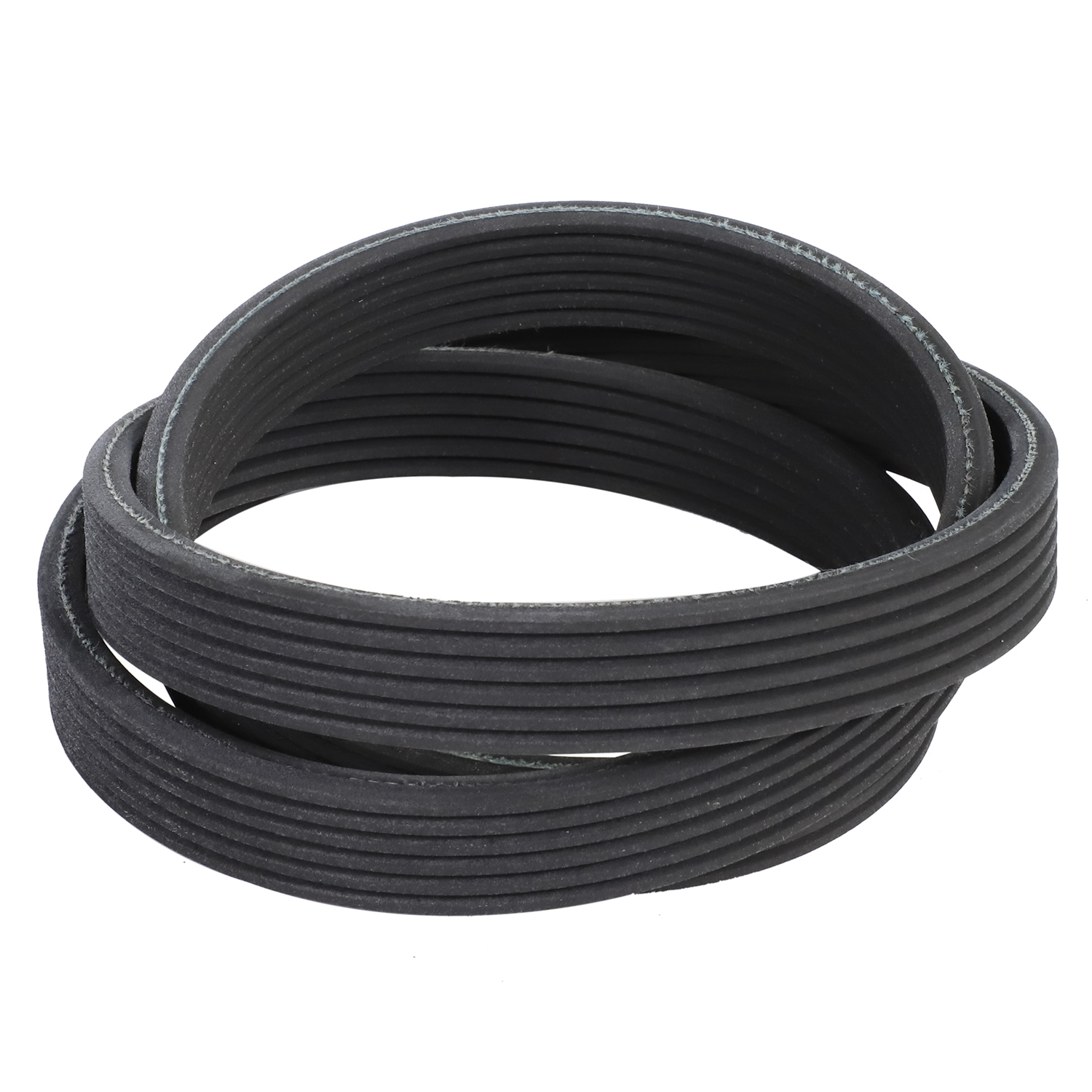

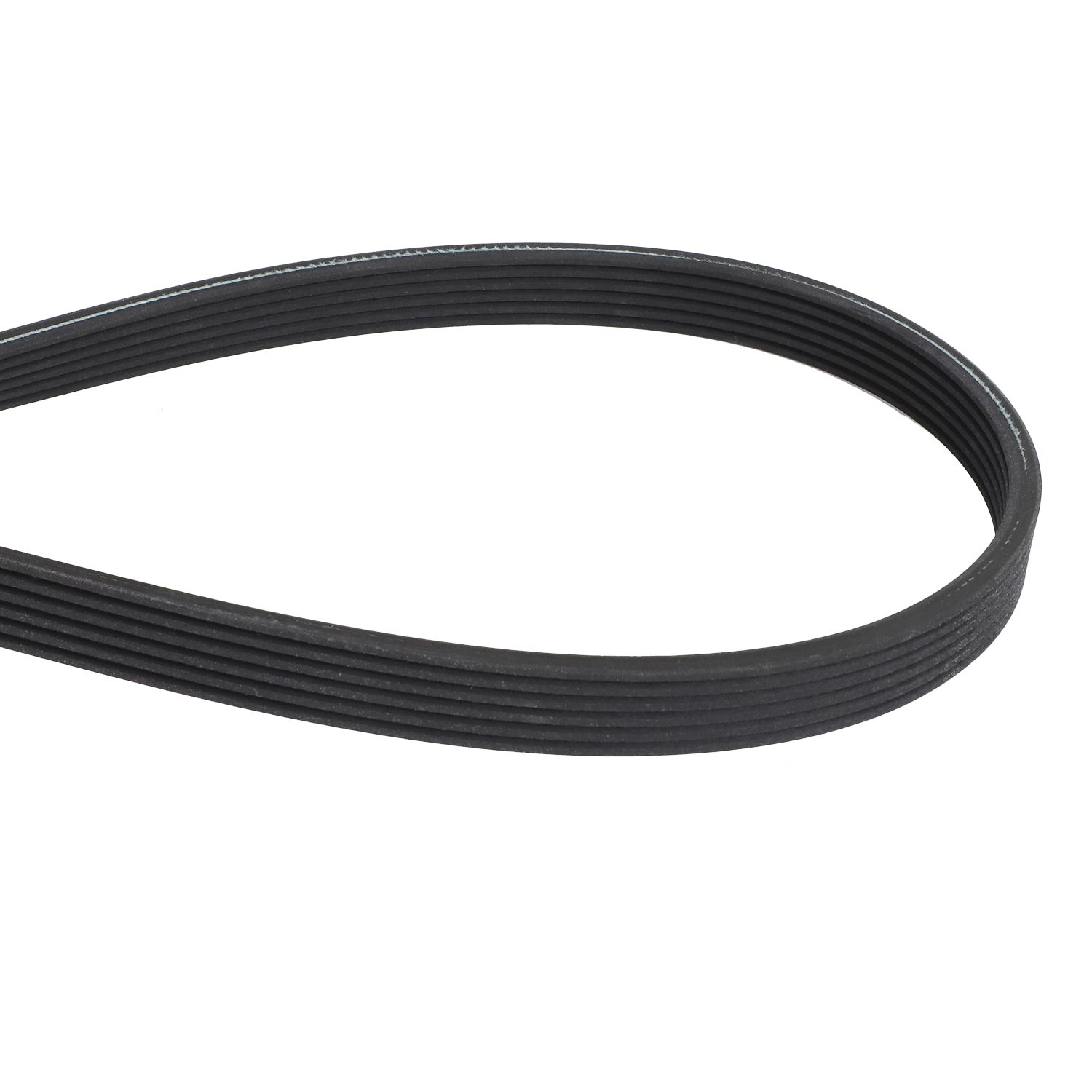

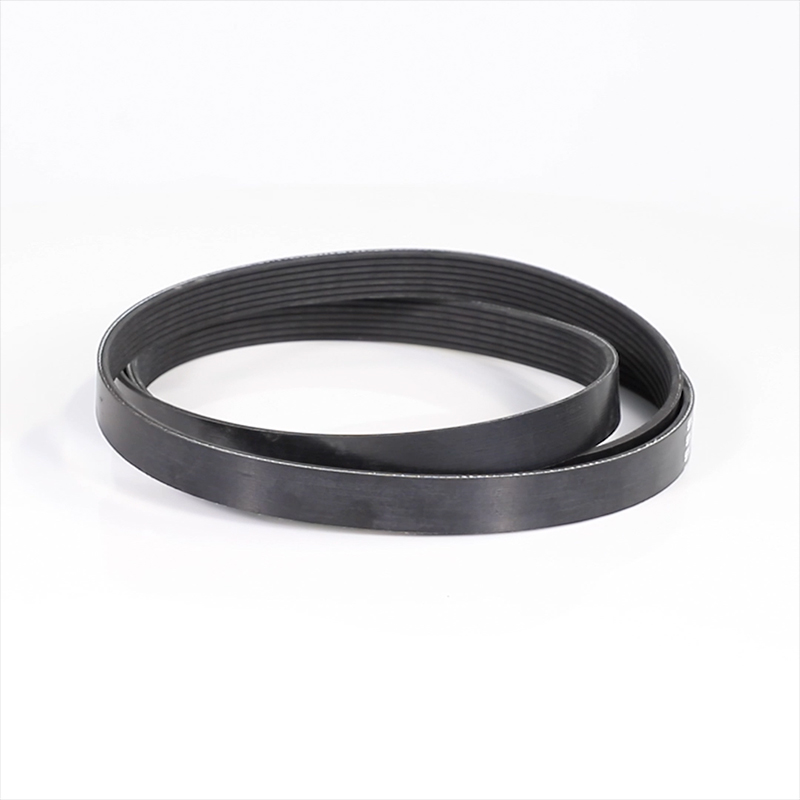

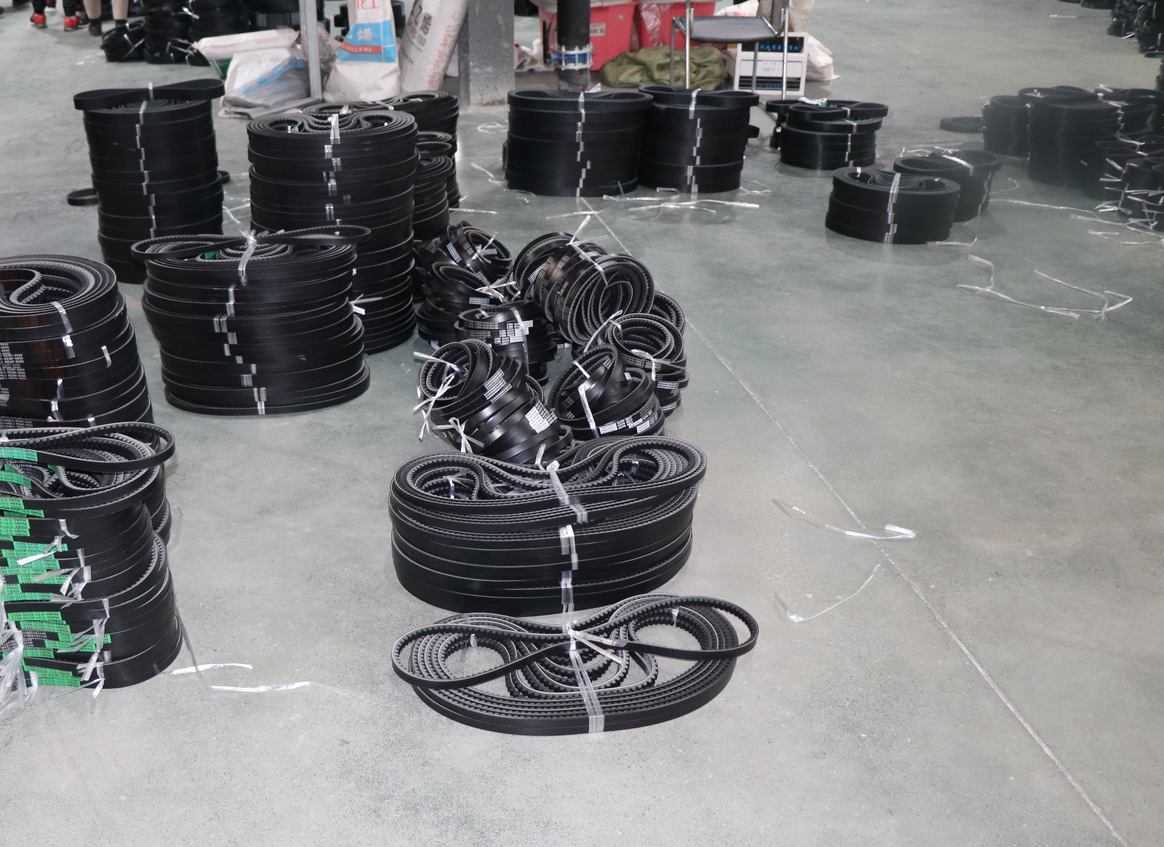

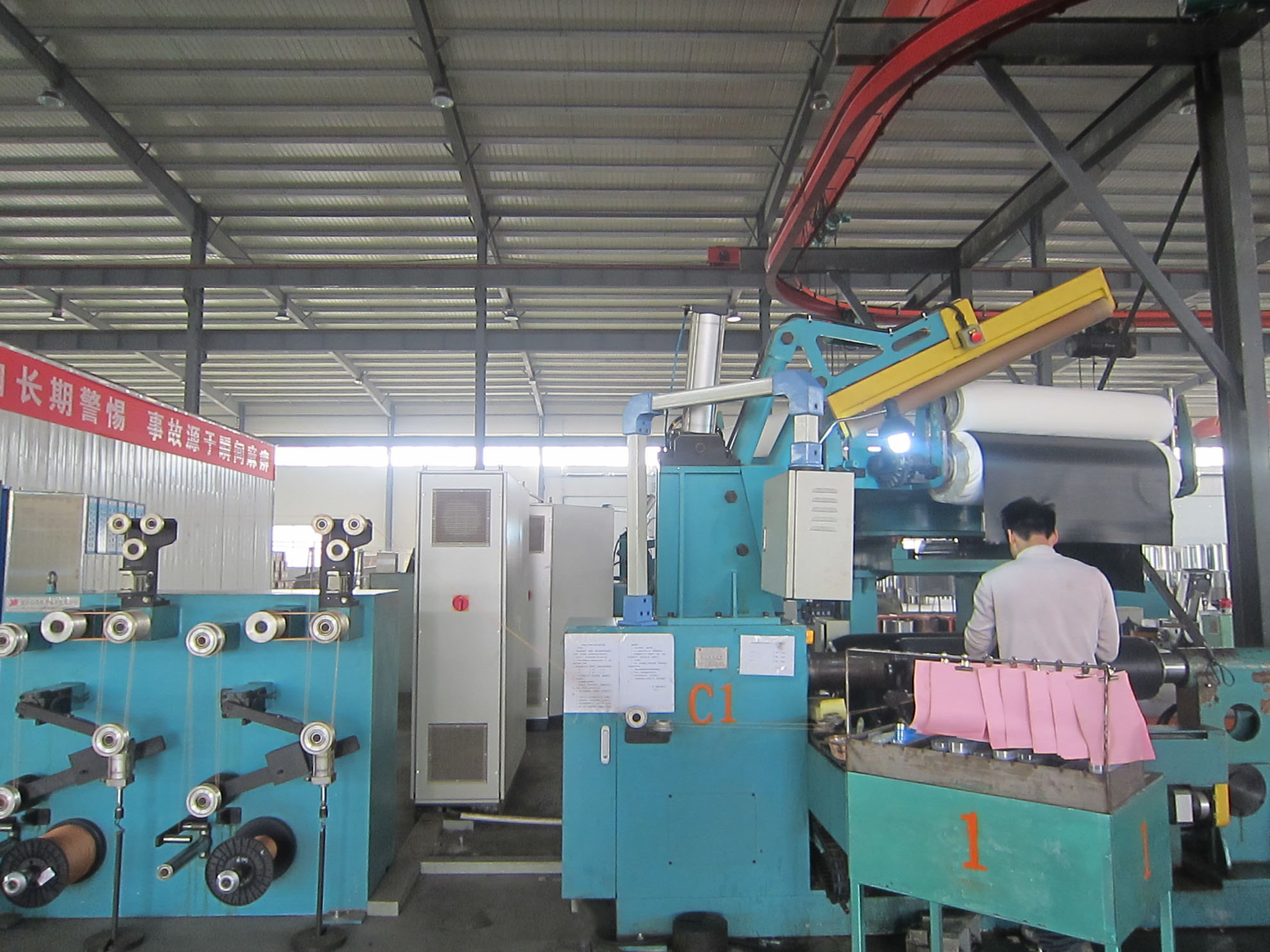

The ribbed belt combines the high flexibility of the flat belt with the high performance of the V-belt. The V-shaped parallel ribs are made from a wear-resistant rubber compound. The high strength tension cord is designed for the many applications of the ribbed belt.
It is embedded in a rubber adhesive mixture and covers the entire width of the ribbed belt. Fibre reinforced, wear resistant rubber compounds ensure quiet operation, oil and heat resistance and a long belt life.
The small minimum pulley diameters are suitable for drives with high speed ratios as well as slow running drives. Ribbed belts are well suited for the use of back bend idlers, such as in serpentine drives.
Specification of V Belt
| Type | pb | rb | rt | Rib Numbers |
belt height |
Thickness | Angle of Rib |
length range (mm) |
| PH | 1.60 | 0.30 | 0.15 | 3~54 | 2.0~3.0 | 3mm | 40° | 300~1270 |
| PJ | 2.34 | 0.40 | 0.20 | 3~36 | 3.0~4.0 | 4mm | 40° | 330~3048 |
| PK | 3.56 | 0.50 | 0.25 | 3~23 | 4.0~6.0 | 4-6mm | 40° | 559~3048 |
| PL | 4.70 | 0.40 | 0.40 | 3~16 | 6.8~7.2 | 10mm | 40° | 1270~4064 |
| PM | 9.40 | 0.75 | 0.75 | 3~8 | 15.5~16.0 | 17mm | 40° | 2540~4064 |
Structure of V Belt
(1).TENSION MEMBER: The treated polyester cord is a low stretch high strength tension member able to withstand shock loads on drives with fixed centres.
(2).RUBBER RIBS: Long wearing, oil resistant, fibre-loaded neoprene rubber is used in the ribs to provide support for the tension member and to transmit the loads to the pulley
(3).BACKING MATERIAL: Bias ply type fabric backing resists cracking and provides abrasion resistance.
(4).INSULATION MATERIAL: Oil and heat risistant rubber is used to bond the tension member to the rest of the belt.
